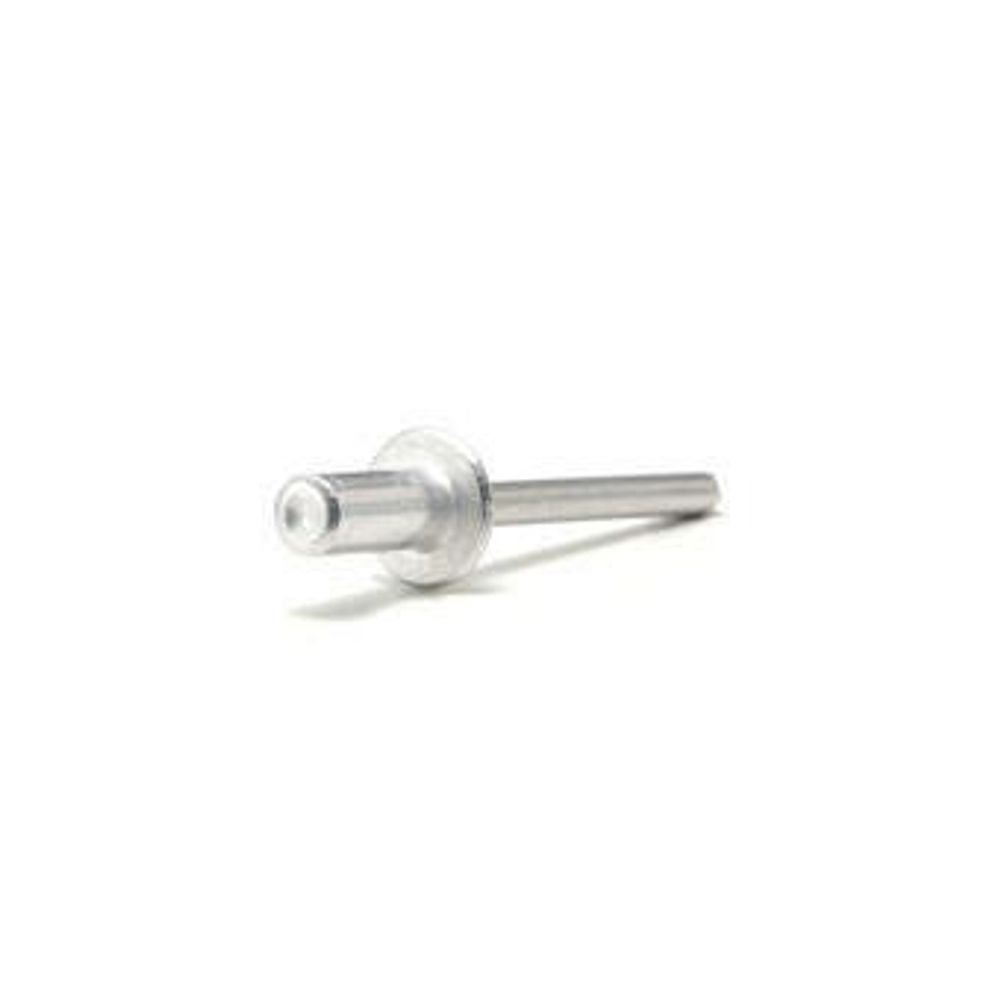

POP 4.0mm [5/32] Aluminum / Steel Closed End Rivets - AK54H
Cód:
AK54H
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

4.7752-6.35 mm Grip with 4 mm Nominal Diameter in Countersunk Head Style with Aluminum Body Material and Steel Mandrel Material

Closed End

Product name4.7752 - 6.35 Grip in Aluminum/Steel, Closed End Non-Structural Blind Rivets
Nominal Diameter mm4.0
Nominal Diameter Inches4.0mm [5/32]
Body MaterialAluminium
Mandrel MaterialSteel
Finish-BodyPlain
Finish- MandrelPlain
Head StyleCountersunk
Min grip mm4.8
Max grip mm6.4
Min Grip Inches0.188
Max Grip Inches0.25
Min Hole Size mm4.06
Max Hole Size mm4.17
Min Holes Size Inches0.16
Max Hole Size Inches0.164
Max Body Length mm12.95
Max Body Length Inches0.51
Max Secondary Protrusion mm12.95
Max Secondary Protrusion Inches0.51
Flange Diameter mm Max8.35
Flange Diameter inches Max0.327
Flange Thickness mm Max1.65
Flange Thickness Inches Max0.065
Shear kN1.89
Tensile kN2.66
Shear lbf430
Tensile lbf605

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code8308206000
JDE_Country_of_OriginUS
JDE_Lead_Time_Days140
JDE_Weight3.637
Minimum Order Quantity7000
Features
  • Blind hole, one-sided installation capability.

  • Unique cup-shaped end configuration.

  • Seals tight, preventing passage of vapor or liquid around or through the set rivet.

  • 23% greater tensile strength than equivalent open-end rivets.

  • 100% mandrel retention.

  • Assembly applications include white goods, electronic enclosures, signs, outdoor cases, scoreboards, LED signs, and recreational vehicles.
