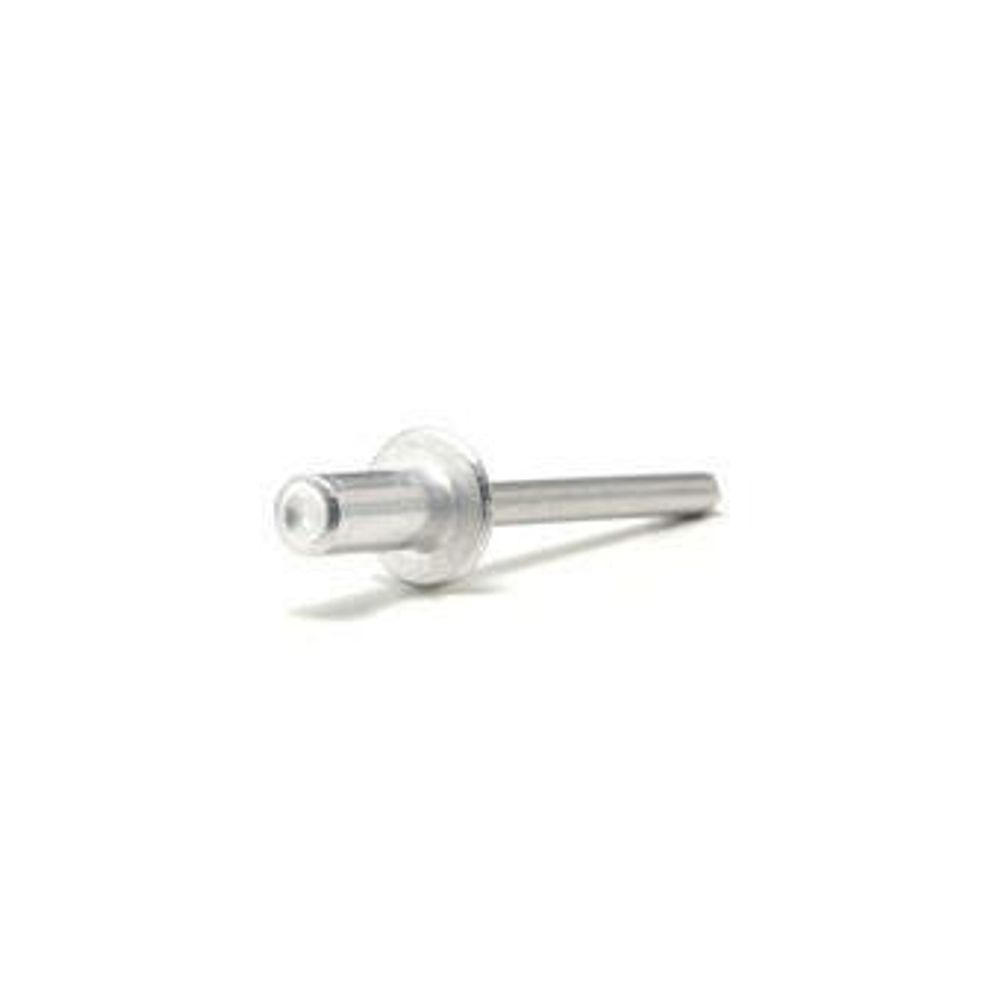

POP 4.0mm [5/32] Aluminum / Stainless Steel Closed End Rivets - AK53SSH
Cód:
AK53SSH
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

3.2004-4.7498 mm Grip with 4 mm Nominal Diameter in Countersunk Head Style with Aluminum Body Material and Stainless Steel Mandrel Material

Closed End

Shear kN1.54
Tensile kN2.11
Shear lbf350
Tensile lbf480
Flange Thickness Inches Max0.065
Flange Thickness mm Max1.65
Flange Diameter inches Max0.327
Flange Diameter mm Max8.35
Max Secondary Protrusion Inches0.447
Max Secondary Protrusion mm11.4
Max Body Length Inches0.447
Max Body Length mm11.4
Max Hole Size Inches0.164
Min Holes Size Inches0.16
Max Hole Size mm4.17
Min Hole Size mm4.06
Max Grip Inches0.187
Min Grip Inches0.126
Max grip mm4.8
Min grip mm3.2
Head StyleCountersunk
Finish- MandrelPlain
Finish-BodyPlain
Mandrel MaterialStainless Steel
Body MaterialAluminium
Nominal Diameter Inches4.0mm [5/32]
Nominal Diameter mm4.0
Product name3.2004 - 4.7498 Grip in Aluminum/Stainless Steel, Closed End Non-Structural Blind Rivets

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code8308206000
JDE_Country_of_OriginUS
JDE_Lead_Time_Days140
JDE_Weight3.33
Minimum Order Quantity8000
Features
  • Blind hole, one-sided installation capability.

  • Unique cup-shaped end configuration.

  • Seals tight, preventing passage of vapor or liquid around or through the set rivet.

  • 23% greater tensile strength than equivalent open-end rivets.

  • 100% mandrel retention.

  • Assembly applications include white goods, electronic enclosures, signs, outdoor cases, scoreboards, LED signs, and recreational vehicles.
