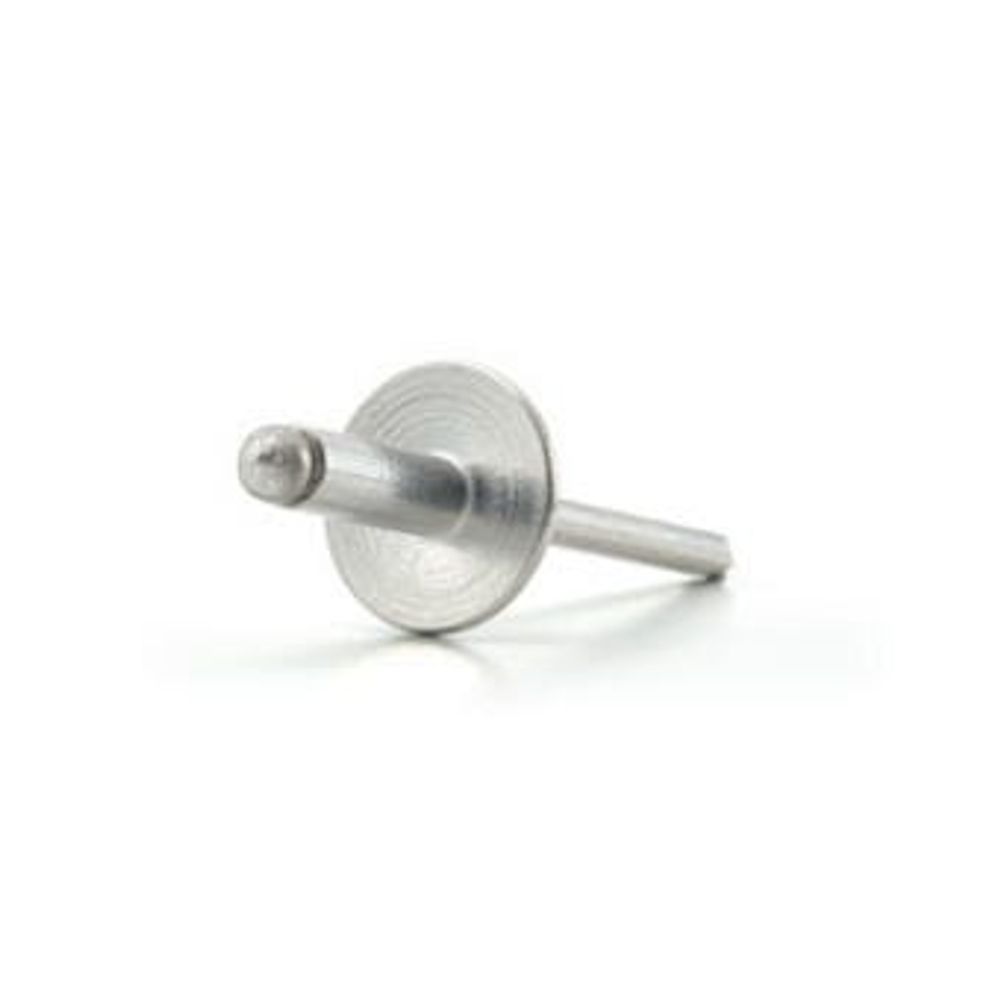

POP 4.0mm [5/32] Aluminum / Steel Open End Rivets - AK52BS
Cód:
AK52BS
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

0.7874-3.175 mm Grip with 4 mm Nominal Diameter in Countersunk Head Style with Aluminum Body Material and Steel Mandrel Material

Open End

Product name0.7874 - 3.175 Grip in Aluminum/Steel, Open End Non-Structural Blind Rivets
Nominal Diameter mm4
Nominal Diameter Inches4.0mm [5/32]
Body MaterialAluminum
Mandrel MaterialSteel
Finish-BodyPlain
Finish- MandrelPlain or Protective Coat
Head StyleCountersunk
Min grip mm0.7874
Max grip mm3.175
Min Grip Inches0.031
Max Grip Inches0.125
Min Hole Size mm4.064
Max Hole Size mm4.16
Min Holes Size Inches0.16
Max Hole Size Inches0.164
Max Body Length mm7.366000000000002
Max Body Length Inches0.29000000000000004
Max Secondary Protrusion mm10.922
Max Secondary Protrusion Inches0.43000000000000005
Flange Diameter mm Max7.5184
Flange Diameter inches Max0.296
Flange Thickness mm Max1.6002
Flange Thickness Inches Max0.063
Shear kN1.51239534918857
Tensile kN2.1796285914776448
Shear lbf340
Tensile lbf490

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code8308206000
JDE_Country_of_OriginUS
JDE_Lead_Time_Days140
JDE_Weight3.649
Features
  • Design of the stem head ensures positive retention after installation

  • Wide range of diameters.

  • Wide range of lengths suitable for material thicknesses up to 26mm.

  • Countersunk (120°) heads available.

  • Break-head mandrels available in most sizes.

  • Blind hole, one-sided installation capability.
