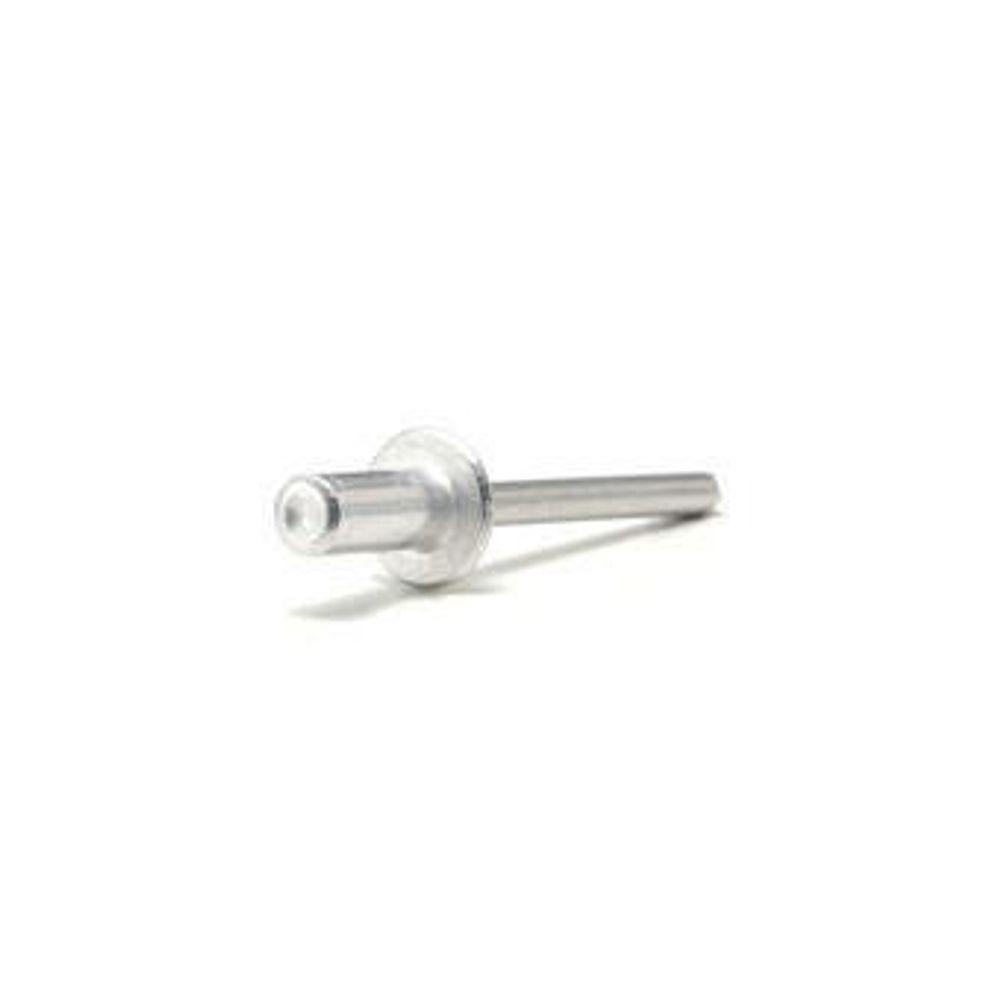

POP 4.0mm [5/32] Aluminum / Stainless Steel Closed End Rivets - AD54SSH
Cód:
AD54SSH
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

4.7752-6.35 mm Grip with 4 mm Nominal Diameter in Dome Head Style with Aluminum Body Material and Stainless Steel Mandrel Material

Closed End

Product name4.7752 - 6.35 Grip in Aluminum/Stainless Steel, Closed End Non-Structural Blind Rivets
Nominal Diameter mm4.0
Nominal Diameter Inches4.0mm [5/32]
Body MaterialAluminium
Mandrel MaterialStainless Steel
Finish-BodyPlain
Finish- MandrelPlain
Head StyleDome
Min grip mm4.8
Max grip mm6.4
Min Grip Inches0.188
Max Grip Inches0.25
Min Hole Size mm4.06
Max Hole Size mm4.17
Min Holes Size Inches0.16
Max Hole Size Inches0.164
Max Body Length mm11.6
Max Body Length Inches0.455
Max Secondary Protrusion mm11.6
Max Secondary Protrusion Inches0.455
Flange Diameter mm Max8.35
Flange Diameter inches Max0.327
Flange Thickness mm Max1.7
Flange Thickness Inches Max0.066
Shear kN1.56
Tensile kN2.14
Shear lbf350
Tensile lbf480

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code8308206000
JDE_Country_of_OriginUS
JDE_Lead_Time_Days140
JDE_Weight3.616
Minimum Order Quantity8000
Features
  • Blind hole, one-sided installation capability.

  • Unique cup-shaped end configuration.

  • Seals tight, preventing passage of vapor or liquid around or through the set rivet.

  • 23% greater tensile strength than equivalent open-end rivets.

  • 100% mandrel retention.

  • Assembly applications include white goods, electronic enclosures, signs, outdoor cases, scoreboards, LED signs, and recreational vehicles.
