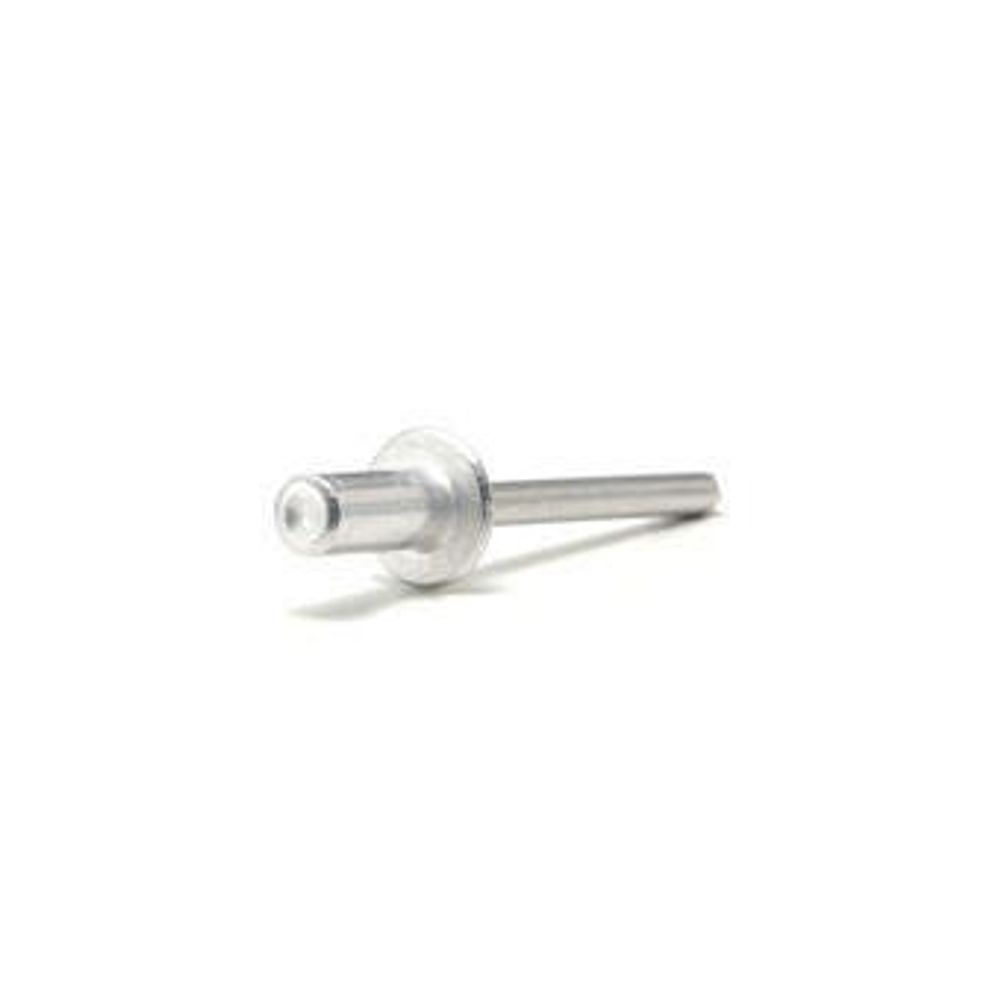

POP 4.0mm [5/32] Aluminum / Aluminum Closed End Rivets - AD53AH
Cód:
AD53AH
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

3.2004-4.7498 mm Grip with 4 mm Nominal Diameter in Dome Head Style with Aluminum Body Material and Aluminum Mandrel Material

Closed End

Product name3.2004 - 4.7498 Grip in Aluminum/Aluminum, Closed End Non-Structural Blind Rivets
Nominal Diameter mm4.0
Nominal Diameter Inches4.0mm [5/32]
Body MaterialAluminium
Mandrel MaterialAluminium
Finish-BodyPlain
Finish- MandrelPlain
Head StyleDome
Min grip mm3.2
Max grip mm4.8
Min Grip Inches0.126
Max Grip Inches0.187
Min Hole Size mm4.06
Max Hole Size mm4.17
Min Holes Size Inches0.16
Max Hole Size Inches0.164
Max Body Length mm10.0
Max Body Length Inches0.392
Max Secondary Protrusion mm9.96
Max Secondary Protrusion Inches0.392
Flange Diameter mm Max8.4
Flange Diameter inches Max0.327
Flange Thickness mm Max1.7
Flange Thickness Inches Max0.066
Shear kN0.69
Tensile kN1.07
Shear lbf155
Tensile lbf240

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code8308206000
JDE_Country_of_OriginUS
JDE_Lead_Time_Days140
JDE_Weight1.76
Minimum Order Quantity8000
Features
  • Blind hole, one-sided installation capability.

  • Unique cup-shaped end configuration.

  • Seals tight, preventing passage of vapor or liquid around or through the set rivet.

  • 23% greater tensile strength than equivalent open-end rivets.

  • 100% mandrel retention.

  • Assembly applications include white goods, electronic enclosures, signs, outdoor cases, scoreboards, LED signs, and recreational vehicles.
