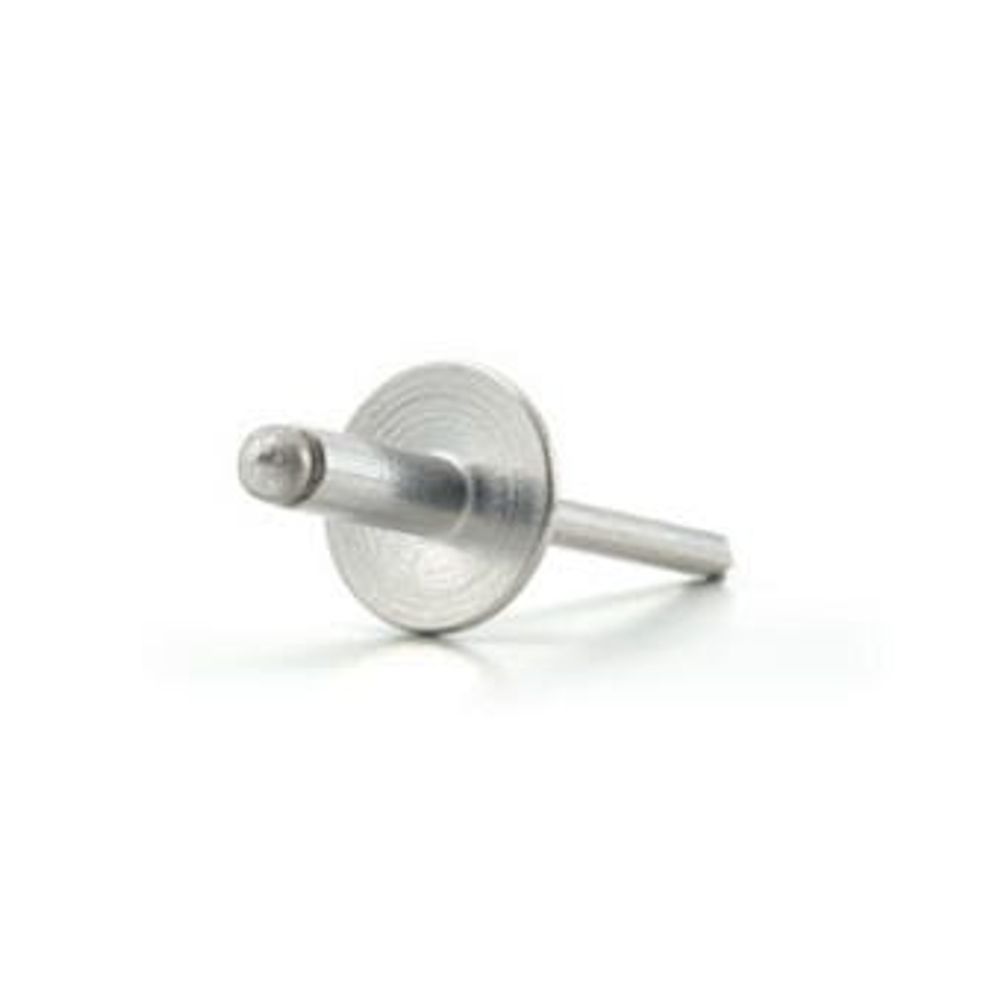

AD44ABSLF S5C - 88112
Cód:
88112
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
| Nominal Diameter mm | 3.2 |
|---|---|
| Nominal Diameter Inches | 3.2mm [1/8] |
| Body Material | Aluminum |
| Mandrel Material | Aluminum |
| Finish-Body | Plain |
| Finish- Mandrel | Plain |
| Head Style | Dome, Large Flange |
| Min grip mm | 4.78 |
| Max grip mm | 6.35 |
| Min Grip Inches | 0.188 |
| Max Grip Inches | 0.25 |
| Min Hole Size mm | 3.2766 |
| Max Hole Size mm | 3.38 |
| Min Holes Size Inches | 0.129 |
| Max Hole Size Inches | 0.133 |
| Max Body Length mm | 9.91 |
| Max Body Length Inches | 0.39 |
| Max Secondary Protrusion mm | 12.95 |
| Max Secondary Protrusion Inches | 0.51 |
| Flange Diameter mm Max | 9.91 |
| Flange Diameter inches Max | 0.39 |
| Flange Thickness mm Max | 1.65 |
| Flange Thickness Inches Max | 0.065 |
| Shear kN | 0.689 |
| Tensile kN | 1.045 |
| Shear lbf | 155 |
| Tensile lbf | 235 |
| Bulk Pack | AD44ABSLF |
| SmallPack | True |
| Minimum Order Quantity | 500 |
|---|
