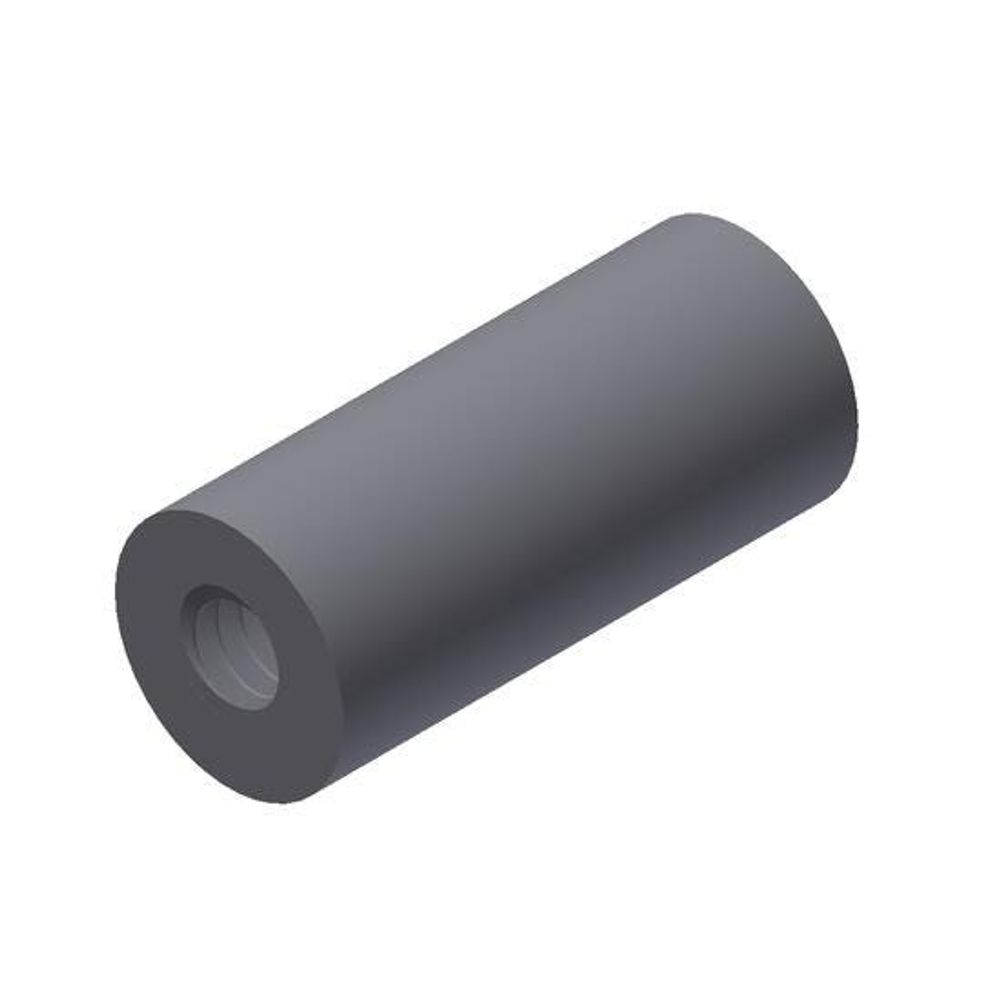

TBL 5/8 X 1 SS316L @ 5/16-18 X - 102103286
Cód:
102103286
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
| Related HD Foot | 502001002.0 |
|---|---|
| Related Foot | 502001138.0 |
| Related Grip | 501001014.0 |
| Related Chuck | 500001016.0 |
| Related Ferrule | 100101187.0 |
| Flash Thickness | 0.187 inches |
| Flash Dia | 0.921 inches |
| Min Base Length | 0.218 inches |
| Tap Length | 0.625 inches |
| Tap Size | 5/16-18 UN/UNF |
| Burn Off | 0.187 inches |
| Overall Length | 1 inches |
| Weld Base Dia | 0.625 inches |
| Stud Dia | 0.625 inches |
| Material (O) | Stainless Steel |
| Brand | Nelson |
| Weight | 0.075 Lb |
| Length | 1 inches |
| Width | 0.625 inches |
| Height | 0.625 inches |
| Features | 1. Standard TBL studs have internal UNC-2B coarse series threads. Internally tapped studs can also be supplied with UNF-2B fine threads. Studs with fine threads are called PBL studs. 2. When maximizing the stud diameter to tap ratio, the stud can also serve as a standoff post. 3. Reduced base studs are available but depth of tap drill point should not pass below shoulder of reduced diameter shoulder so that stud strength is not compromised. |
|---|
