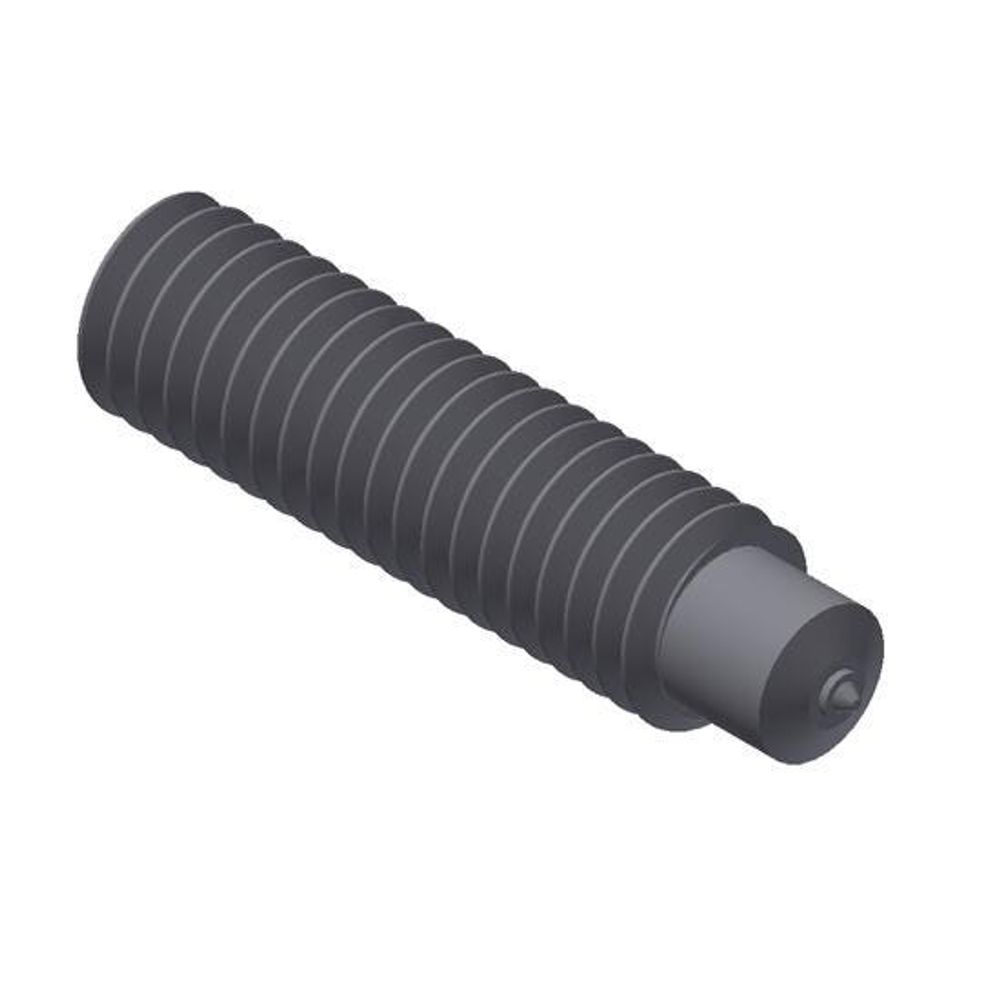

CJL 1/4-20 X 7/8 SS316L - 102014111
Cód:
102014111
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
| Height | 0.25 inches |
|---|---|
| Width | 0.25 inches |
| Length | 0.875 inches |
| Weight | 0.01 Lb |
| Brand | Nelson |
| Material (O) | Stainless Steel |
| Stud Dia | 0.25 inches |
| Weld Base Dia | 0.187 inches |
| Overall Length | 0.875 inches |
| Weld Base Length | 0.187 inches |
| Burn Off | 0.093 inches |
| Thread Size | 1/4-20 UN/UNF |
| Flash Dia | 0.281 inches |
| Flash Thickness | 0.093 inches |
| Related Ferrule | 100101067.0 |
| Related Chuck | 500001007.0 |
| Related Grip | 501001007.0 |
| Related Foot | 502001137.0 |
| Related HD Foot | 502001001.0 |
| Features |
1. Nelson Reduced Base Studs conform to AWS D1.1, TS 16949 and ISO 13918. |
|---|
